Centering Day Labels with MidBusdayLocator¶
MidBusdayLocator places one tick at the midpoint of each business session.
This is useful for day labels on the minor axis: the label sits visually
centered inside the session rather than at 12:00.
Core code:
ax.xaxis.set_minor_locator(busdayaxis.MidBusdayLocator())
ax.xaxis.set_minor_formatter(mdates.DateFormatter("%a"))
import matplotlib.dates as mdates
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import busdayaxis
busdayaxis.register_scale()
# define dummy data
OPEN = 9
CLOSE = 17
num_days = 5
dates = pd.date_range("2025-01-06", periods=num_days * 24, freq="h")
returns = np.random.normal(0, 0.002, len(dates))
returns[(dates.hour <= OPEN) | (dates.hour > CLOSE)] = 0.0
returns[~np.is_busday(np.array(dates, dtype="datetime64[D]"))] = 0.0
prices = (1 + pd.Series(returns, index=dates)).cumprod()
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(dates, prices.values, linewidth=1.3)
ax.set_xscale("busday", bushours=(OPEN, CLOSE))
ax.xaxis.set_major_locator(busdayaxis.DayLocator())
ax.xaxis.set_major_formatter(mdates.DateFormatter(""))
ax.xaxis.set_minor_locator(busdayaxis.MidBusdayLocator())
ax.xaxis.set_minor_formatter(mdates.DateFormatter("%A"))
ax.xaxis.grid(True, which="major")

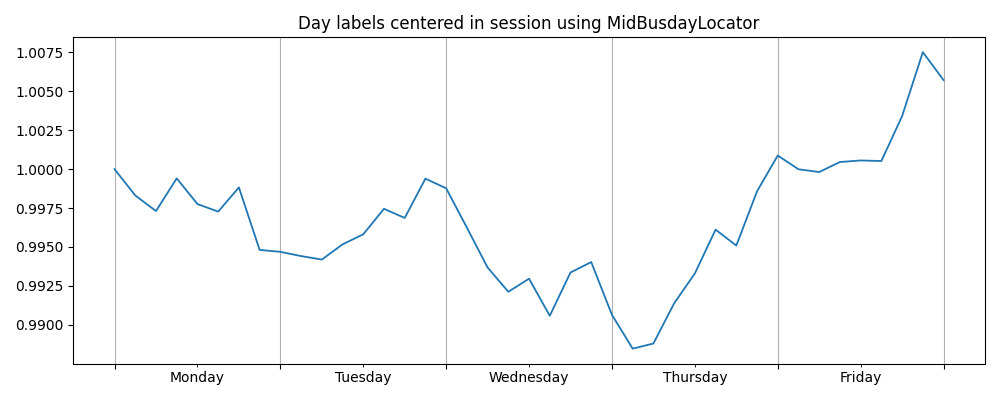

ax.set_title("Day labels centered in session using MidBusdayLocator")
_ = plt.tight_layout()
Total running time of the script: ( 0 minutes 0.497 seconds)
